Engineering the Cutting Edge

At Conicity Technologies we develop engineered micro-geometries, also known as edge preparation, for cutting tools to increase productivity, tool life, and improved part quality for manufacturers across many industries.

Our customers include Fortune 500 manufacturers down to medium sized job shops, tool reconditioning shops, and some of the finest tool manufacturers on the planet.  If you are an end user, we can help you drastically improve your cutting speeds and productivity with a direct impact to your bottom line.  If you are a tool manufacturer or regrinding shop, we can help you build tools that will win you new business and replace the competition.  If you are a tool integrator, Conicity can help your company with cost saving initiatives.

Founded by inventor William Shaffer in 1999, Conicity Technologies is the leading provider of carbide, pcd, and cbn cutting tool edge preparation solutions.

1999: Conicity was founded to design and market a new generation of insert honing system. Since its inception Conicity has been focused on servicing producers of high performance carbide inserts with honing systems like the IXM-50.

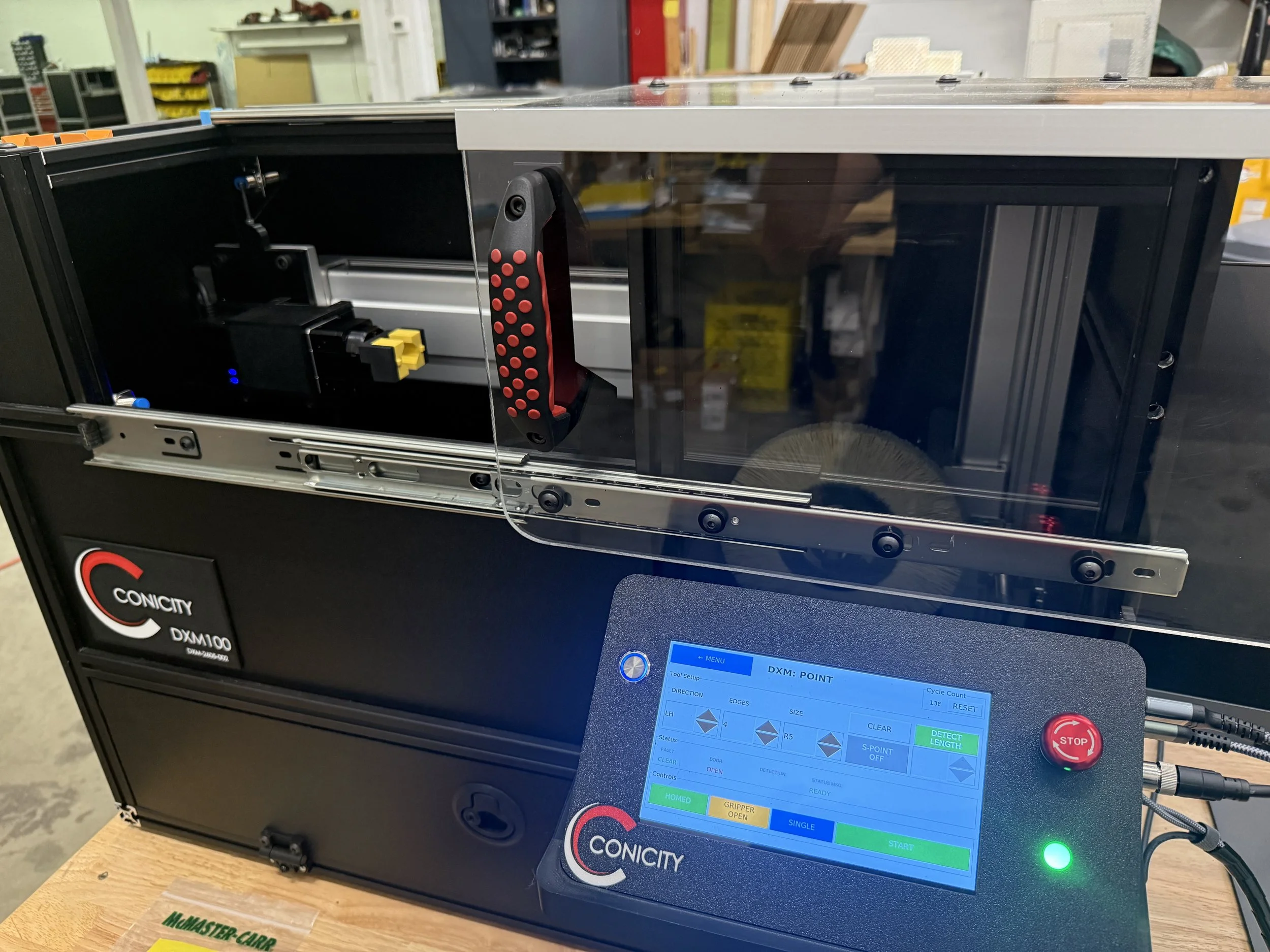

2001: Demand for precision edge geometries on carbide drills led to the development of the DXM-50 drill honing system. This system allowed tool producers to manipulate the edge preparation at different points along the cutting edge in order to meet varying cutting conditions.

2002: Conicity’s SHXM-50 honing system was designed to overcome the unique difficulties of placing precision edge preparations on super-hard (PCD and CBN) tools. Users of super-hard tooling have been able to dramatically reduce tool consumption by using tools produced on the SHXM-50.

2003: Using the patented capabilities of its honing systems, Conicity began marketing Engineered Micro-Geometries™ (EMG™). Tools with EMG were made available directly to users through Conicity’s contract honing service as well as through authorized tool producers.



Proper edge preparation is the missing piece to the tooling puzzle

Proper edge preparation is the missing piece to the tooling puzzle

Tool edge preparation, in recent years has been universally recognized as one of the four main ingredients required in successful cutting tool manufacturing.

These four ingredients include (1) tool substrate composition (tool base material), (2) tool geometry, (3) proper coating (if required) and (4) edge preparation. Over the past 20 years R&D efforts have focused mainly on the first three of the four ingredients, with vast resources being expended in these areas to develop more reliable and repeatable processes. In comparison the fourth ingredient, tool edge preparation, has been neglected when one looks at the progression of technological developments in this area.

The above photo illustrates the wide variety of tooling that requires edge prep in today’s demanding manufacturing environments.

The above photo illustrates the wide variety of tooling that requires edge prep in today’s demanding manufacturing environments.

Proper selection and application of cutting tool edge preparation is one of the basic ingredients for a successfully manufactured and optimum performing cutting tool. In today’s high technology manufacturing environment cutting edge preparation is fast becoming a necessity on all cutting tools manufactured of cemented carbide, ceramic, PCBN and PCD.

The demands put on the cutting tool industry by its customers, using new high-tech machining equipment while facing the requirements of manufacturing with an increasing list of exotic materials, are high. With the new materials bombarding the industry and the ability for CNC machines to run in a "flat-out" untended environment, the performance demands are increasing on cutting tools. The need to produce more predictably performing tools is paramount to the industry and no one expects that trend to change.

Die Flash

Die Flash

Edge defects are present in nearly all tools prior to edge prep. The defects are the result of die flash after pressing, EDM processing and grinding. Some of these defects are illustrated here. Although microscopic in size such defects lead to erratic tool performance and premature tool failure. These defects must be eliminated if one is to achieve optimum tool performance.

The tool edge preparation process, when administered properly, adds strength to the tool cutting edge, lengthens usable tool life, minimizes the propensity of the edge to chip, improves part quality and consistency, and enhances work piece surface finish. Some of the edge preparation options currently used by the tool manufacturer are up sharp (no edge prep after grinding), radius or waterfall hone shapes, T-Land (or K-Land), and T-land + hone. The most widely used edge preparation that exists in industry today is the radius and waterfall hone shapes. These edge preps are applied in a variety of sizes based on cutting tool size and application. Edge prep is not limited to application of indexable style tooling. It is required on most cemented carbide round tools, brazed steel shank tools, PCD and PCBN tools, and single/multiple edge cemented carbide form tools. While T-Lands (or K-Lands) are ground on to the tool edge, edge hones are applied to cutting tools in a variety of methods. These processes include vibratory honing, honing by hand with diamond stones, mass media honing, slurry honing, honing inserts with media impregnated rubber wheels, dry blasting, wet blasting, tumbling and brush honing with abrasive media impregnated filaments.

Radius Hone

Radius Hone

Waterfall Hone

Waterfall Hone

Typical T-Land or K-Land

Typical T-Land or K-Land

T-Land + Hone

T-Land + Hone

Today the process of cutting tool edge honing still remains an art for most tool manufacturers. The conventional honing processes available today are highly prone to over-working the corners of the tool and they can be difficult to control tool-to-tool because incoming part condition can vary. More often than not, the honing process is still guided by the best educated guess scenario limited by machine variability and operator expertise.

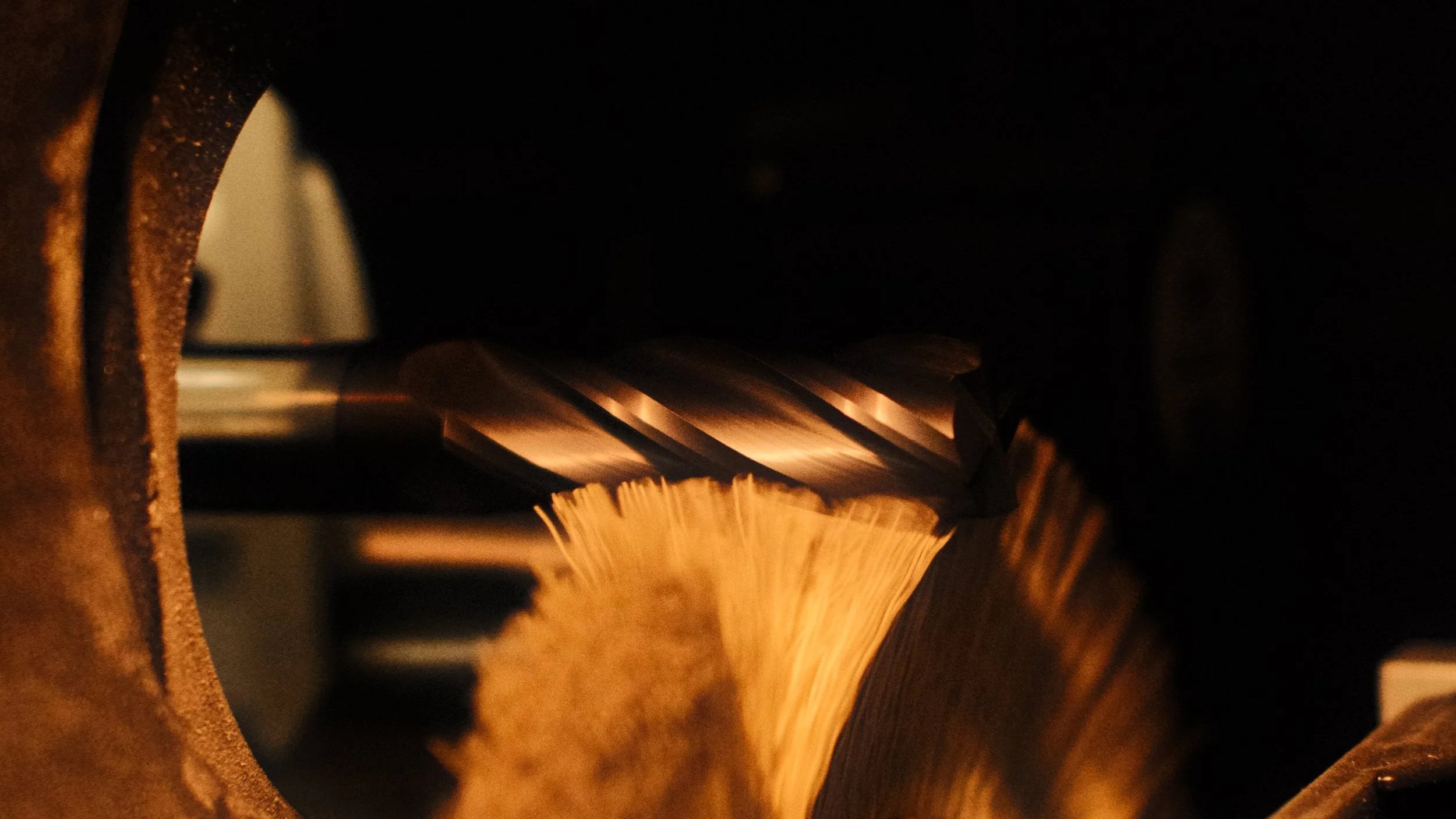

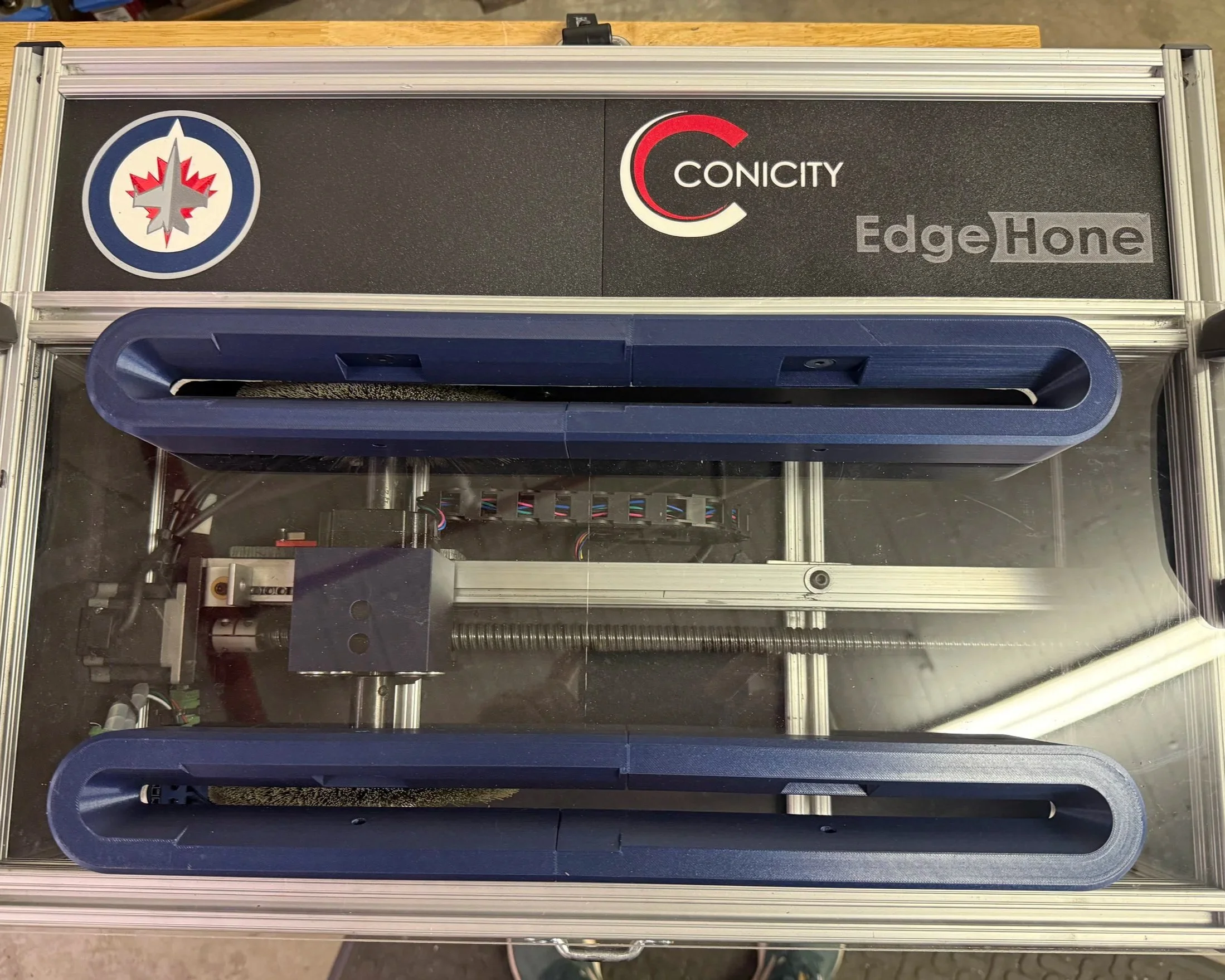

With Conicity Technologies this all changes, we have taken edge preparation to the next level, making it a science. Now the technology and equipment exists using the nylon abrasive filament brush technique to overcome nearly all the current processing problems and to produce a tool that will yield optimum performance in any given operation or application. The following pictures illustrate just a few of the tool types to which Conicity can apply the EMG™ edge prep.

Variable Edge Preparation

Variable Edge Preparation

Drill Point Edge Preparation

Drill Point Edge Preparation

Not satisfied with the performance of your current tooling?

Having difficulty machining Titanium, 718 Inconel, or high nickel alloy stainless steel?

With materials like these, the industry has come to accept poor tool life, slow cutting speeds, chipping, chatter and poor quality finish.  With the right cutting tool and Conicity Edge Preparation, you could increase your material removal rate by two to four times or more.  Machining faster means more parts produced per hour and fewer expensive machining centers tied up on tough jobs.

Conicity's Edge Prep is also proven to be effective in the machining of composites, aluminum, copper, bronze, cast iron, nodular iron, and mild steel.

We offer edge preparation as a service out of our Turtle Creek HQ.  Typical orders are completed in 1-2 business days of receipt.  Pricing depends on the complexity of the tool and quantity to be serviced.  We offer free tool evaluation and sample edge preparation so you can try it out at no risk to you!

Tools we edge prep on a daily basis include:

  • End Mills

  • Drills

  • Circular Saw Blades

  • Band Saw Blades

  • Step Drills

  • Reamers

  • Taps

  • Thread Mills

  • Milling Inserts

  • Turning Inserts

  • Gun Drills

  • Grooving Inserts

  • Broach Dies

  • Profiling/Form Inserts

  • PCD and PCD Tipped Tools

  • CBN and CBN Tipped Tools

  • Natural Diamond Tools
